VCORE 4.0
AWD modules for Vcore 4.0 (Non hybrid)

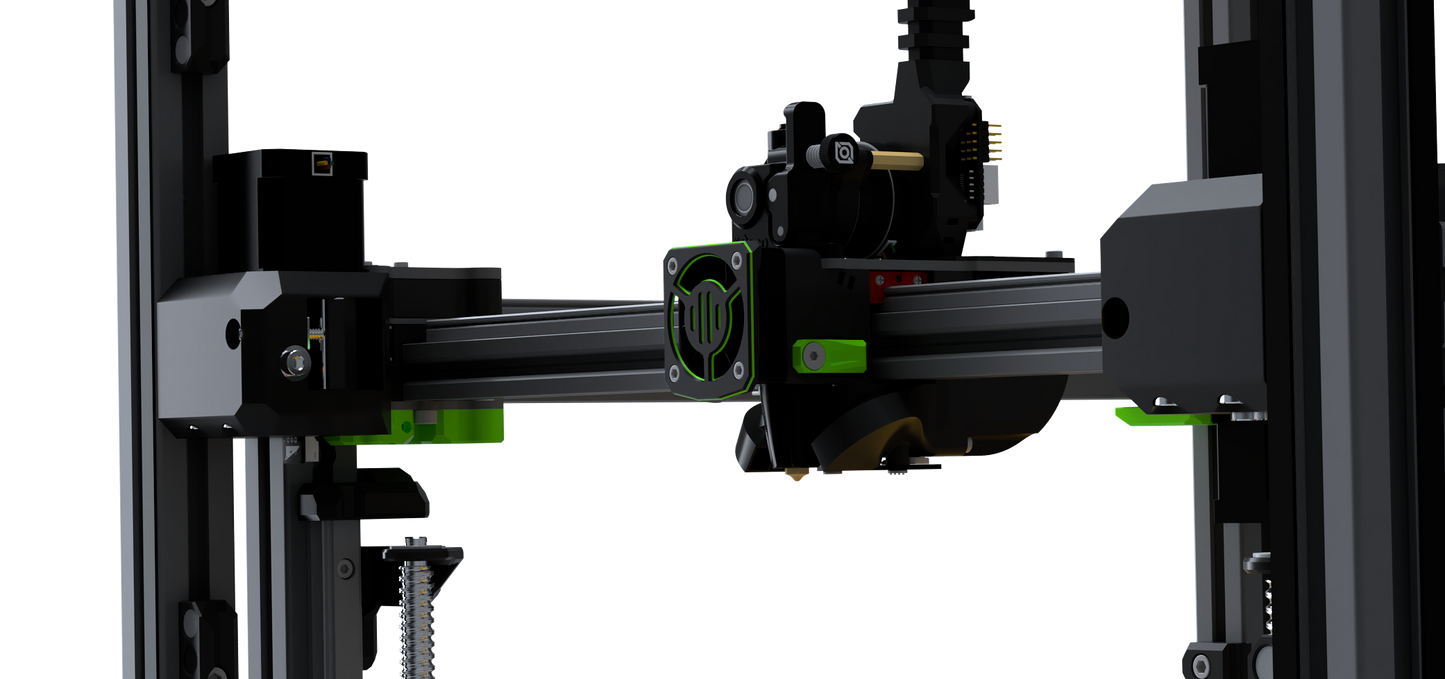

Based on the "best seller" product of BRS-ENGINEERING, the BRS-AWD for Vcore 3/3.1, I present you the BRS-AWD V2, exclusively made for the VCORE 4.0.
Why this mod? The VC4 get the Hybrid layout...

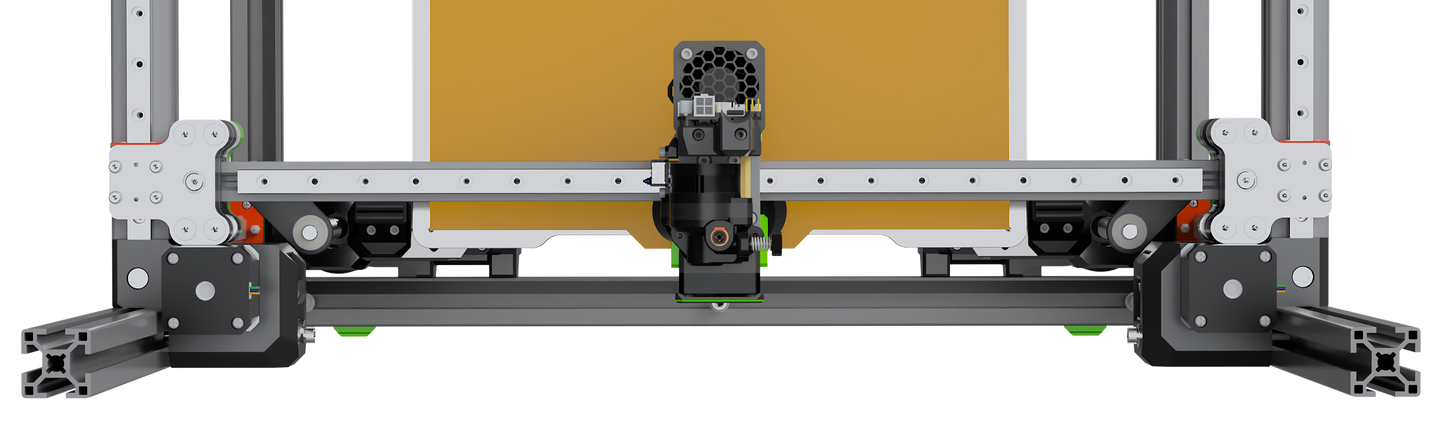

Well most people are focused on the single toolhead setup, Hybrid CoreXY is focused for IDEX layouts. Here the BRS-AWD V2 will unlock some cool specs:
-Way less complex than the Hybrid layout: you keep only the 2 CoreXY belts (XY), no need to add 2 others for Y. This give you less parts, less variables, leading to a better reliability, a better calibration, and way less maintenance. Beside that, the system is more balanced.
-On the performance side, no need to proove AWD layouts legendary performances, it improves single toolhead acceleration, speed, but more importantly the print quality
-Easy assembly, no modifications of the Frame needed, no need of Enclosure modifications. Require at least 30-60mm more belt lenght
-Integrated brand new coaxial belt tensionner
-The more dense mechanism made on any BRS upgrade so far for a small form factor

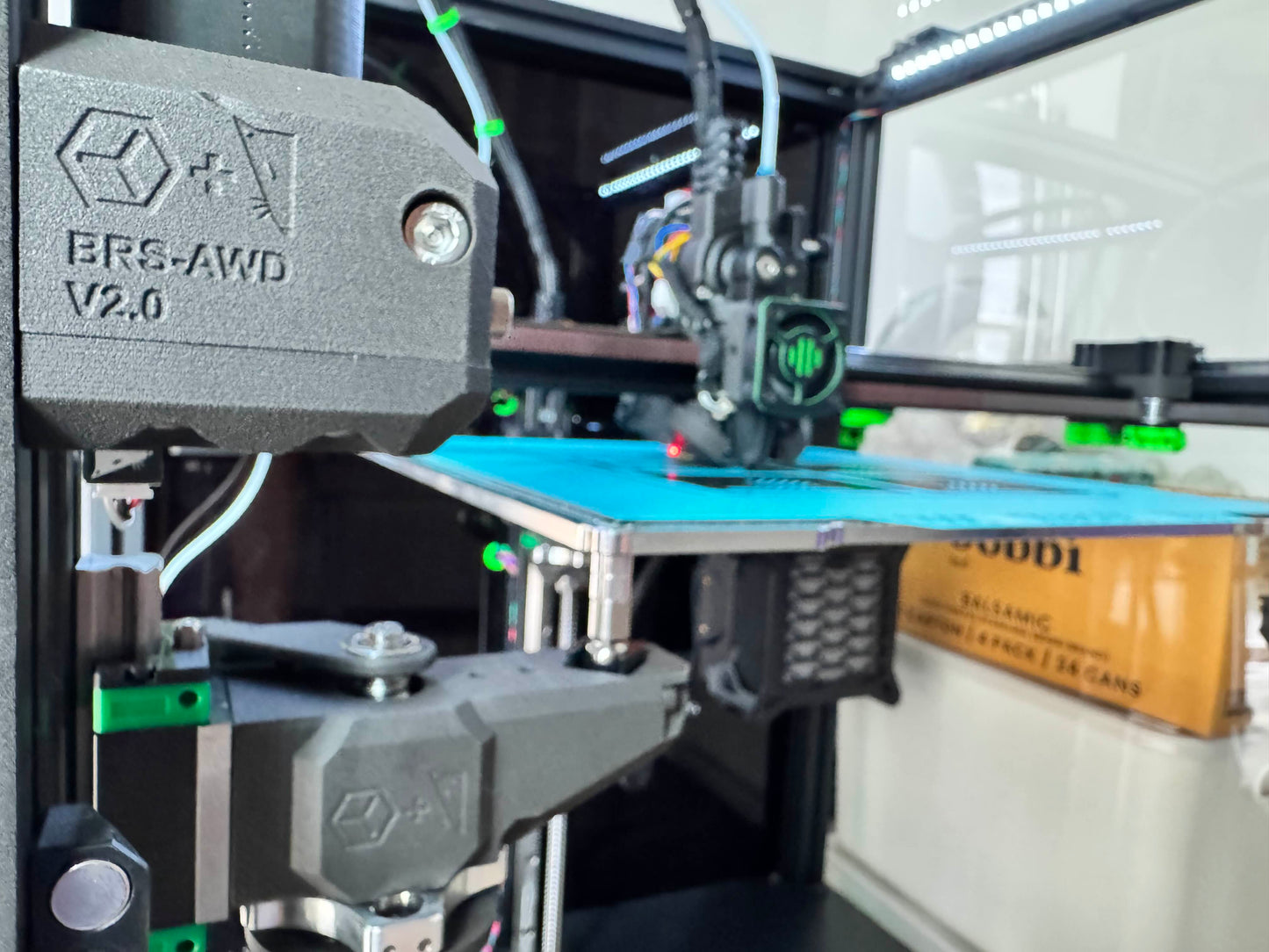

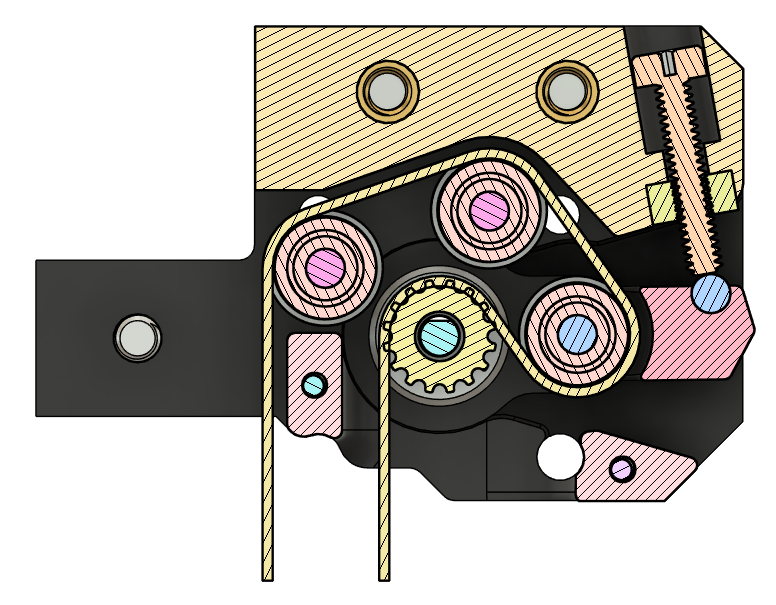

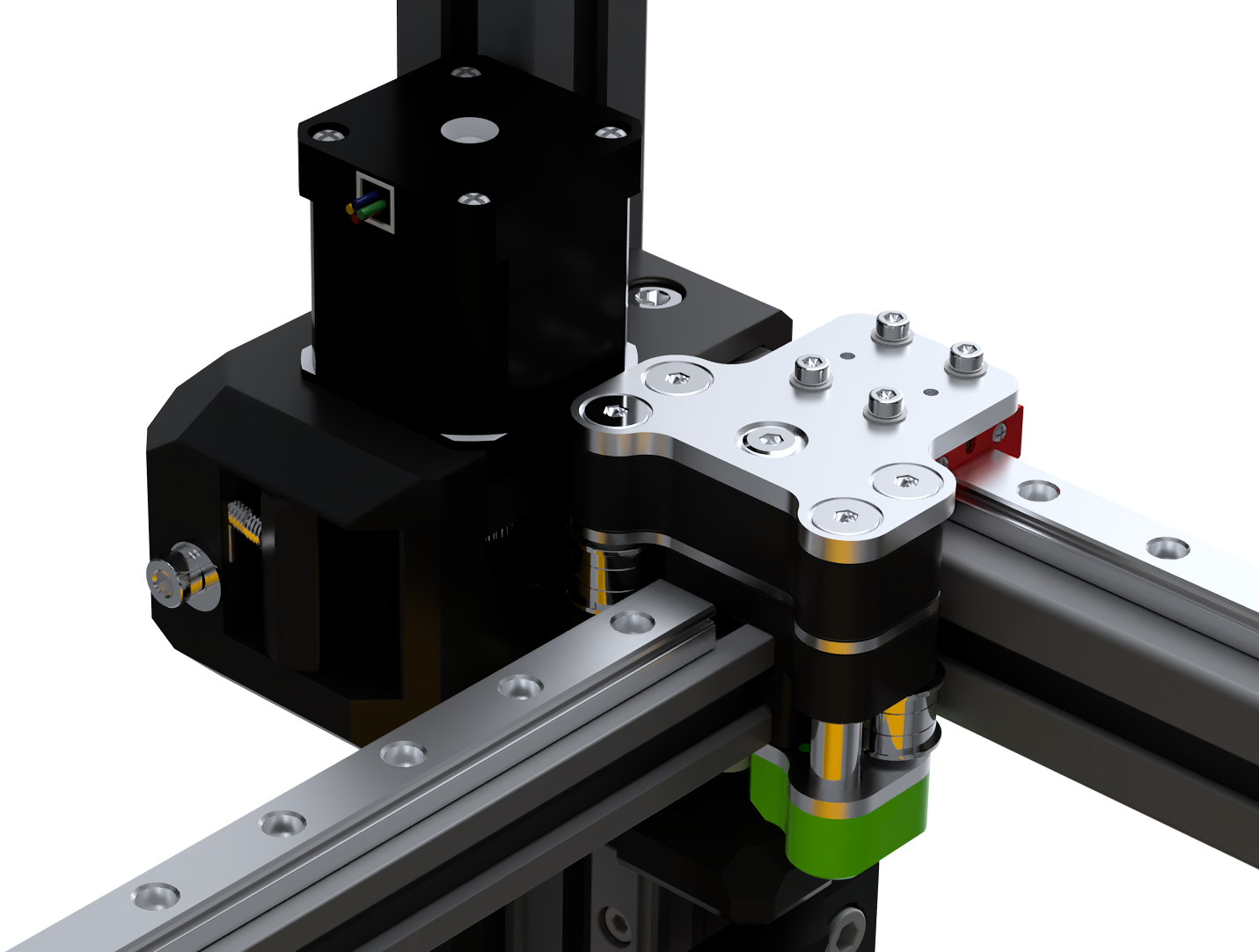

The New COAXIAL TENSIONNER:
As the metal VCORE 4.0 stock tensionner will be removed, a new coaxial tensionner mechanism has been developped to fit the need, and to make the system as dense as possible:

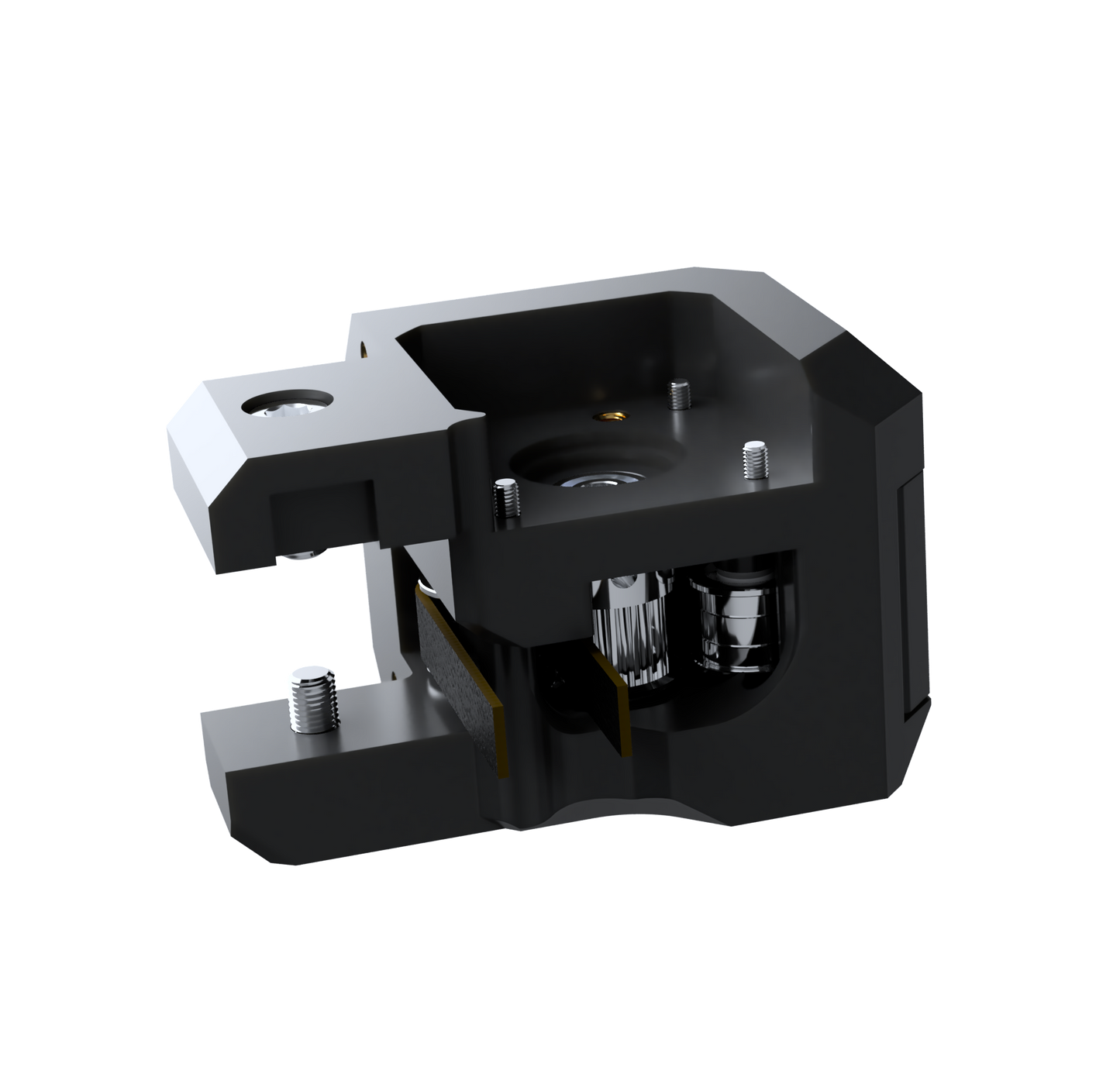

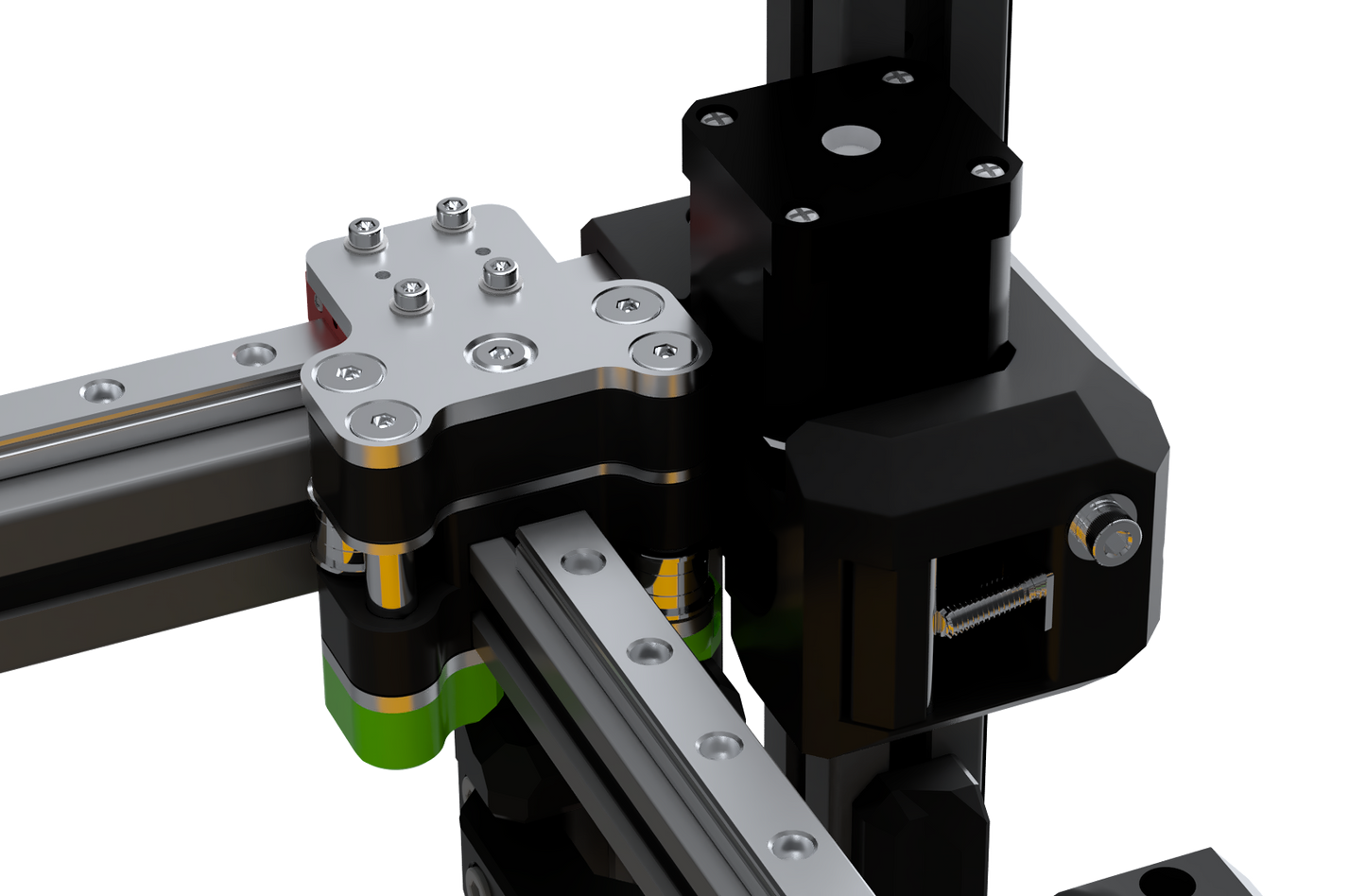

Design keypoints:
-Use LDO-42STH48-2504AH(S37)(Speedy power HT) for this setup, you can use another motor type but it needs to match the rear motors (same brand same model) and need at least a 37mm shaft
-Delete the need of couplers and shafts like the AWD 1.36 for the previous VCORE 3.0/3.1, (less parts, less problems)

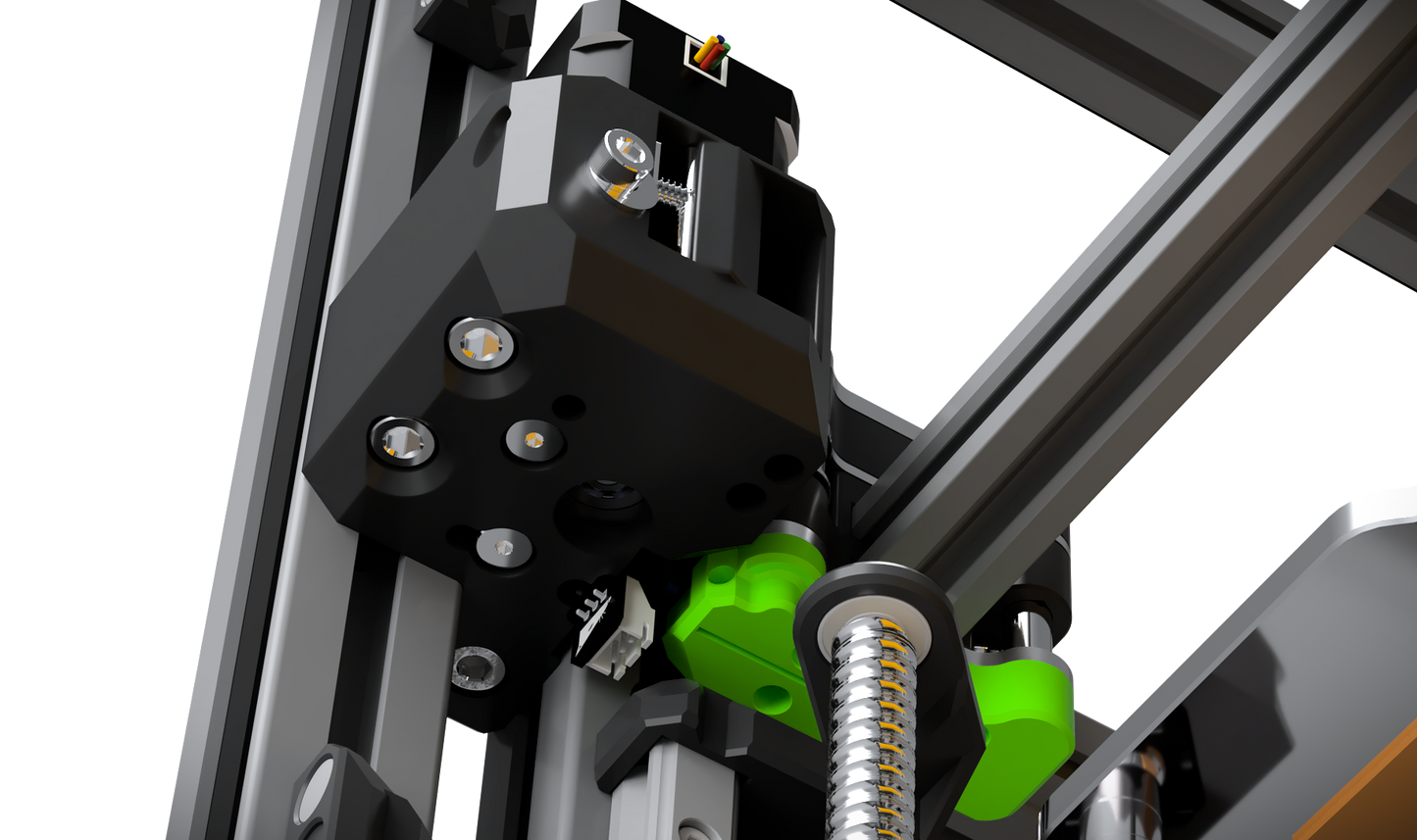

-2x M6, 1x M5, and 2x M4(used by the stock tensionner) anchor points to ensure a perfect stability
-Optionnal: Used with 48V TMC5160Pro, unlock the full potential of a sprinter machine

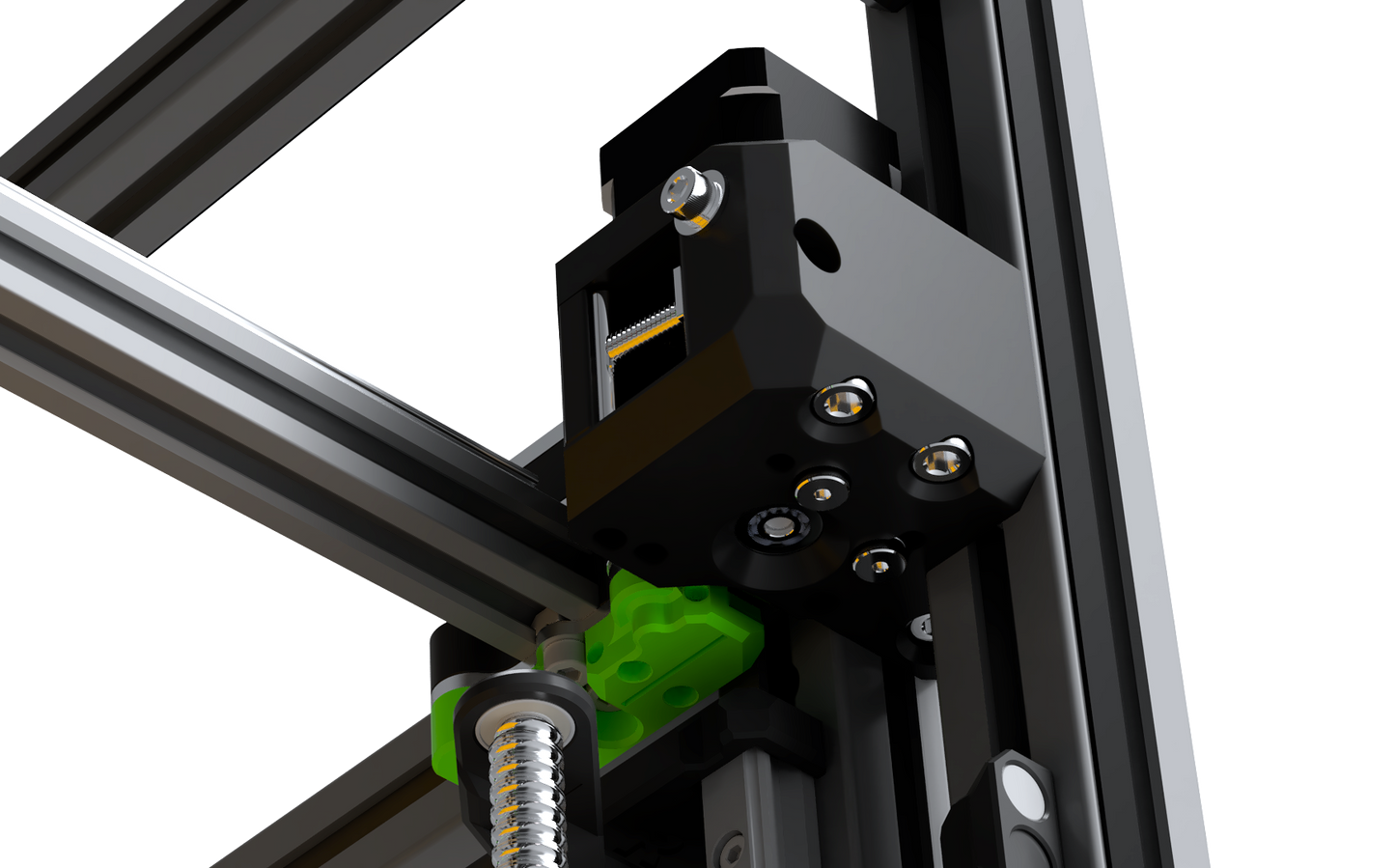

-No Y loss, the Y endstop need to be relocated in the AWD lower section, with a cfg correction for Y max in the printer.cfg, the VC4.0 got some margin
The Kit:

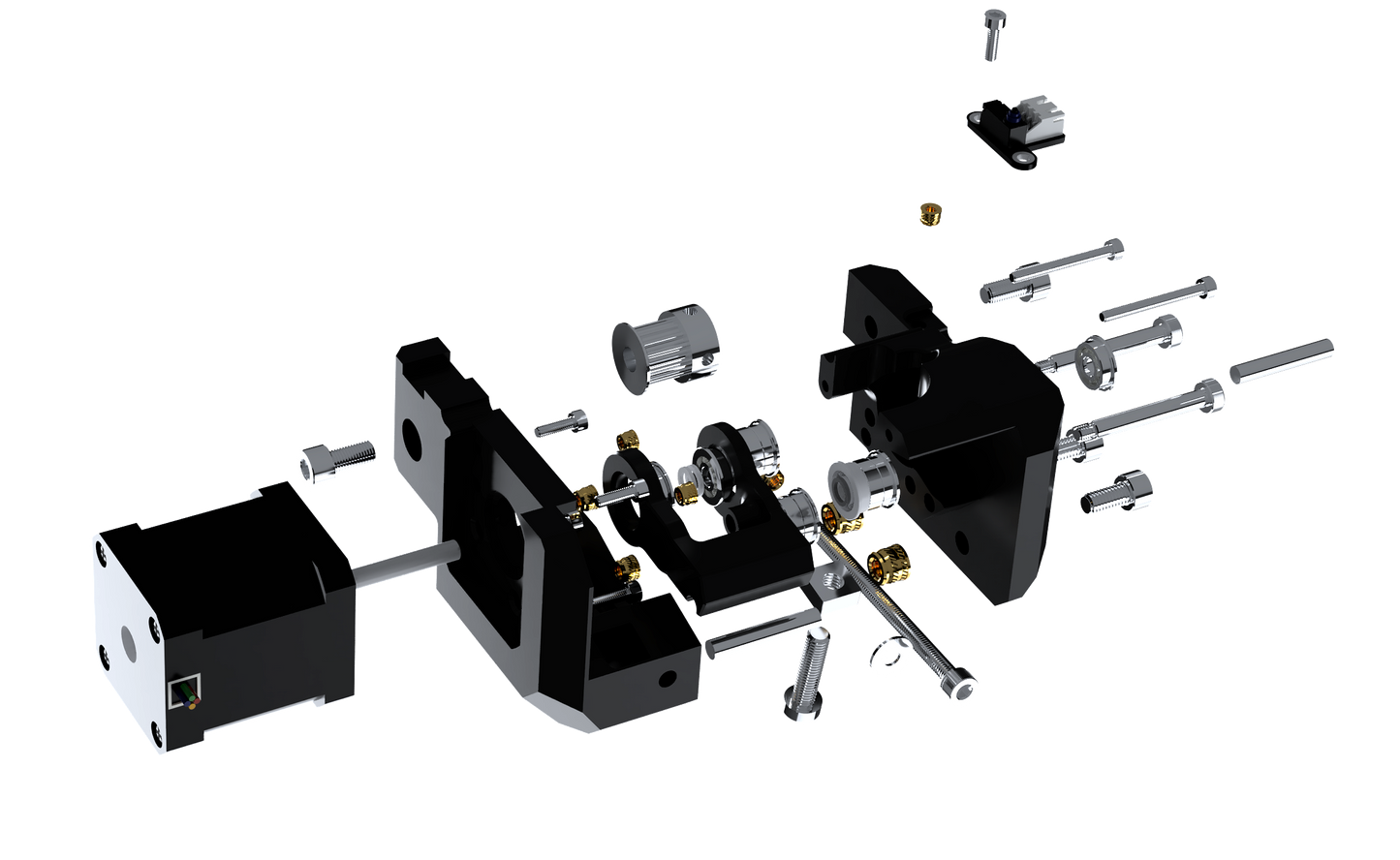

It features all the bolts, screws, bearings, always with premium quality, and PA12CF15 annealed printed parts. But without the 2x drivers and the 2x motors.
It comes partially preassembled, you just need to place it on the machine!
And as always, an assistance at any moment ;)
Compatibility:
- COMPATIBLE WITH: VCORE 4.0 Z-Upgrade 3.x
- This AWD V2 mod is compatible ONLY with the CoreXY Layout, this mod is not compatible with Hybrid layout (yet)
Files/Manual/Project Page:
------------------------------------------------------------------------------------
VCORE 3.1
AWD modules for Vcore 3.1 (With enclosure 2.0)
Based on the "best seller" product of BRS-ENGINEERING, the BRS-AWD for Vcore 3/3.1,
This model will reduce the parts needed in the previous version, and will replace the L3VER M3 product

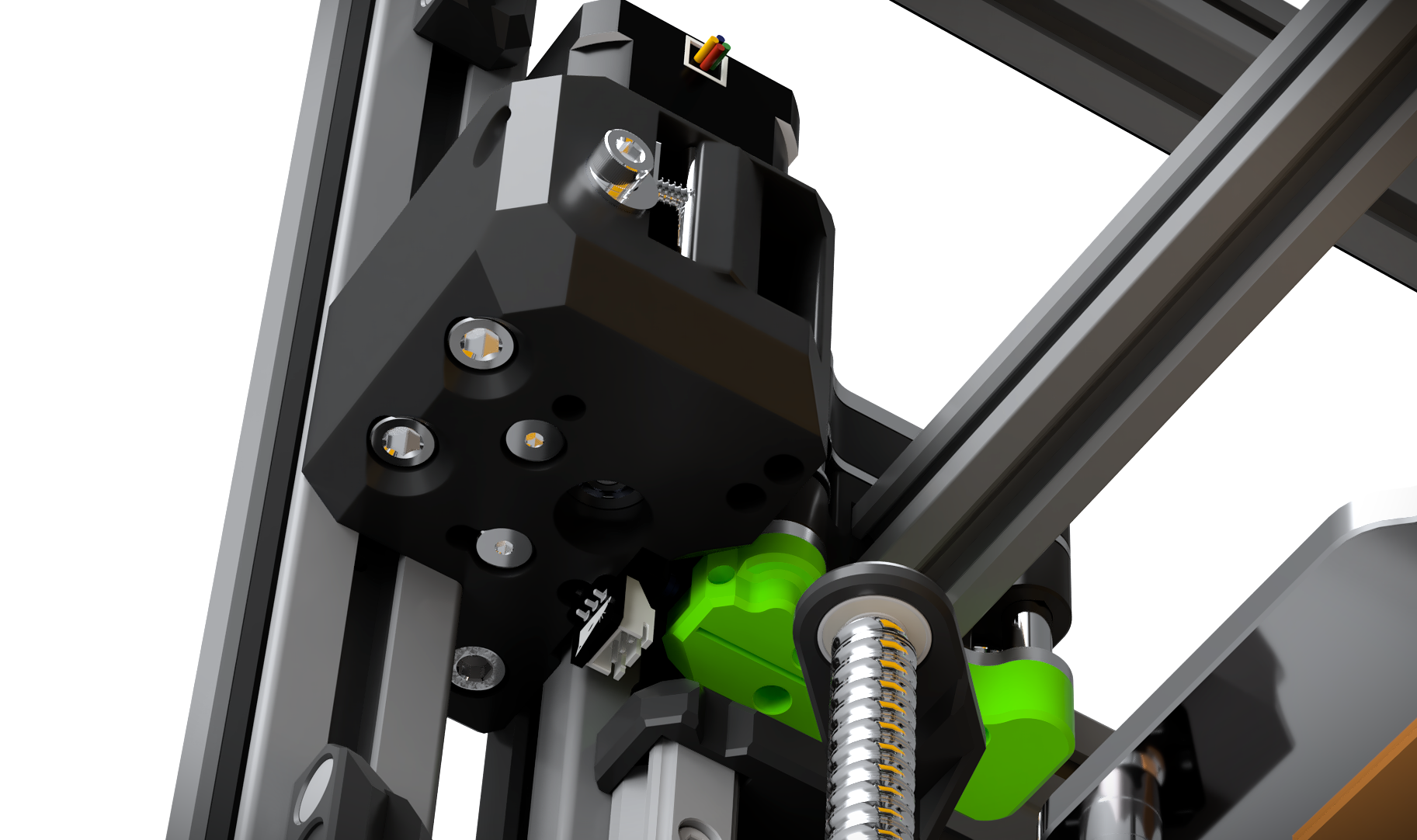

The New COAXIAL TENSIONNER:
As the metal VCORE 4.0 stock tensionner will be removed, a new coaxial tensionner mechanism has been developped to fit the need, and to make the system as dense as possible
Design keypoints:
-Use LDO-42STH48-2504AH(S37)(Speedy power HT) for this setup, you can use another motor type but it needs to match the rear motors (same brand same model) and need at least a 37mm shaft
-Delete the need of couplers and shafts like the AWD 1.36 for the previous VCORE 3.0/3.1, (less parts, less problems)
The Kit:
It features all the bolts, screws, bearings, always with premium quality, and PA12CF15 annealed printed parts. But without the 2x drivers and the 2x motors.
Compatibility:
- COMPATIBLE WITH: VCORE 3.1 with Enclosure 2.0, Stock Z, Z-Upgrade 2.8DE
- Keep in mind that you may need to get the LDO-42STH48-2504AH(S37)(Speedy power HT) on the rear to to get the best performances
Files/Manual/Project Page:
Licence:
