BRS-ENGINEERING

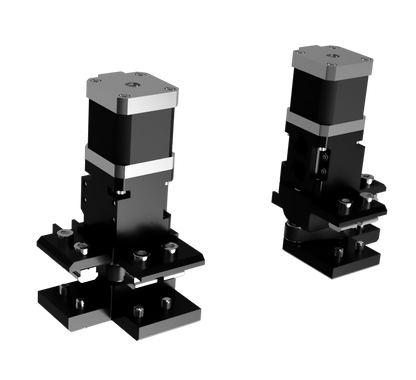

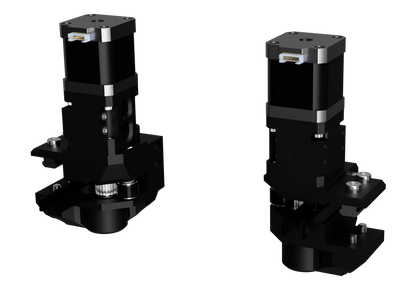

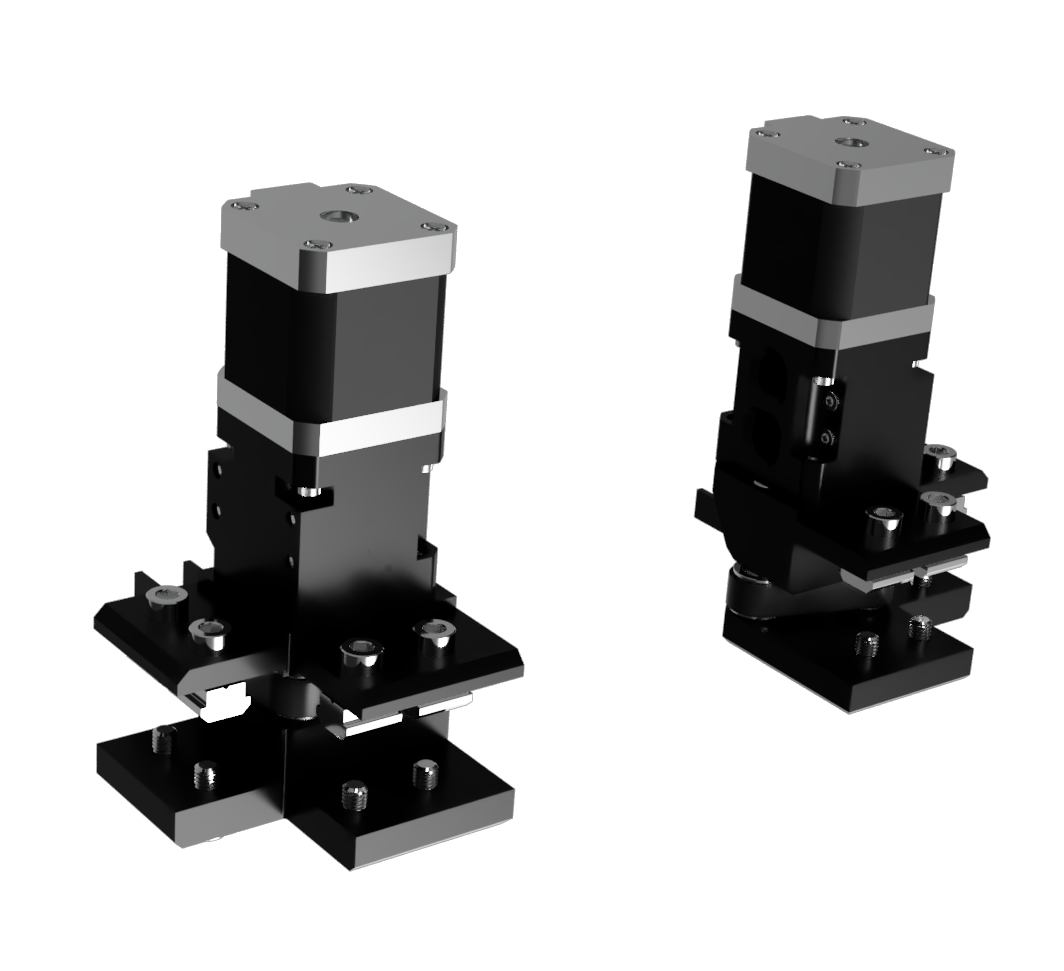

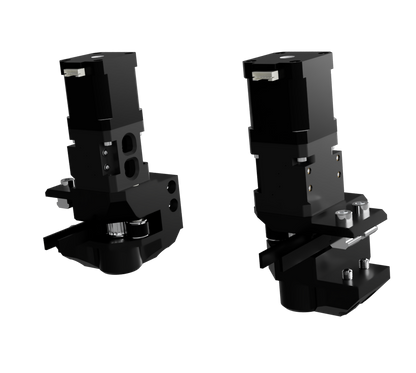

BRS-AWD DRIVE 1.35a (Hardware kit ONLY)

BRS-AWD DRIVE 1.35a (Hardware kit ONLY)

Prix habituel €79,00 EUR
Prix habituel Prix soldé €79,00 EUR
Vente Bientôt Disponible
Taxes incluses. Frais d'expédition calculés à l'étape de paiement.
Style
Layout

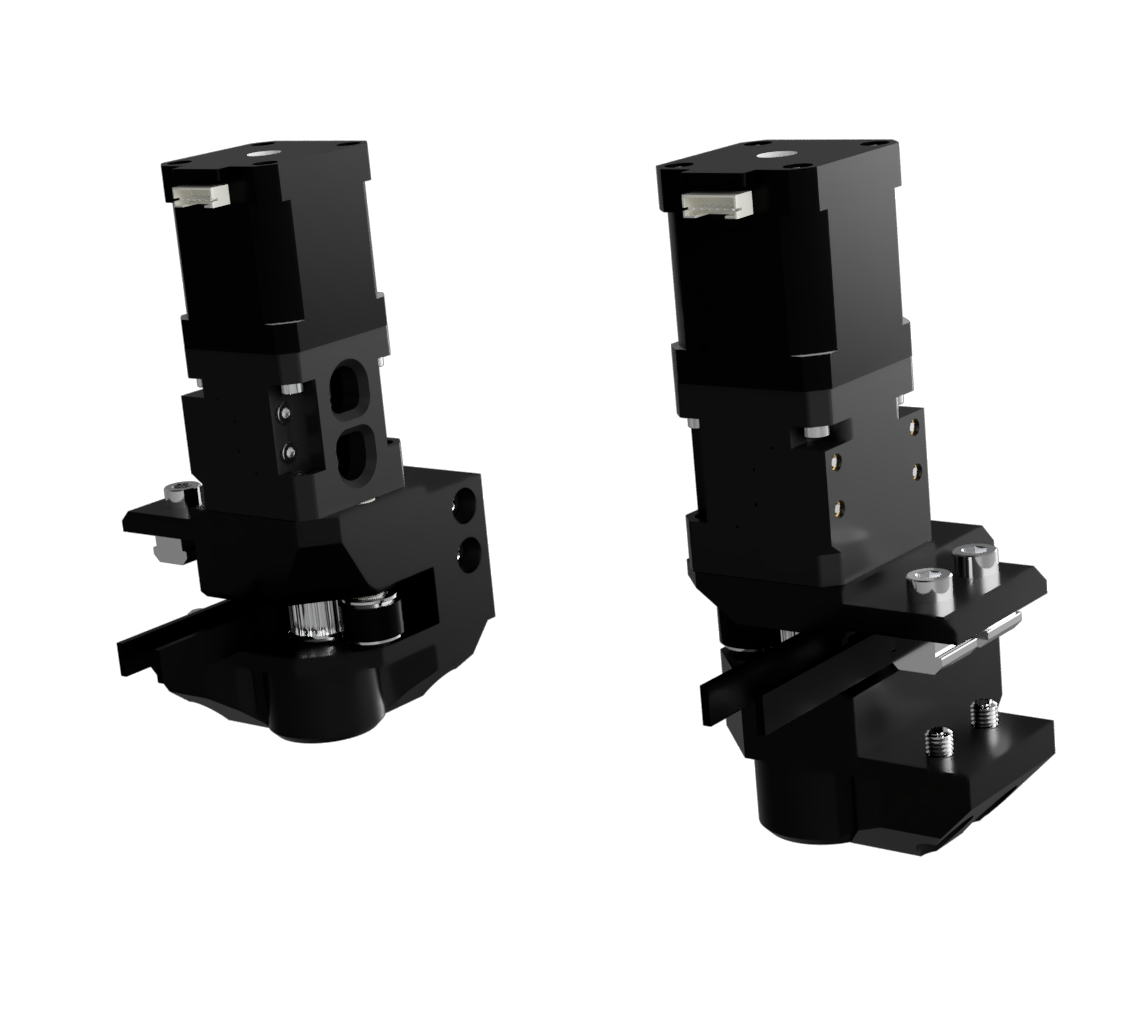

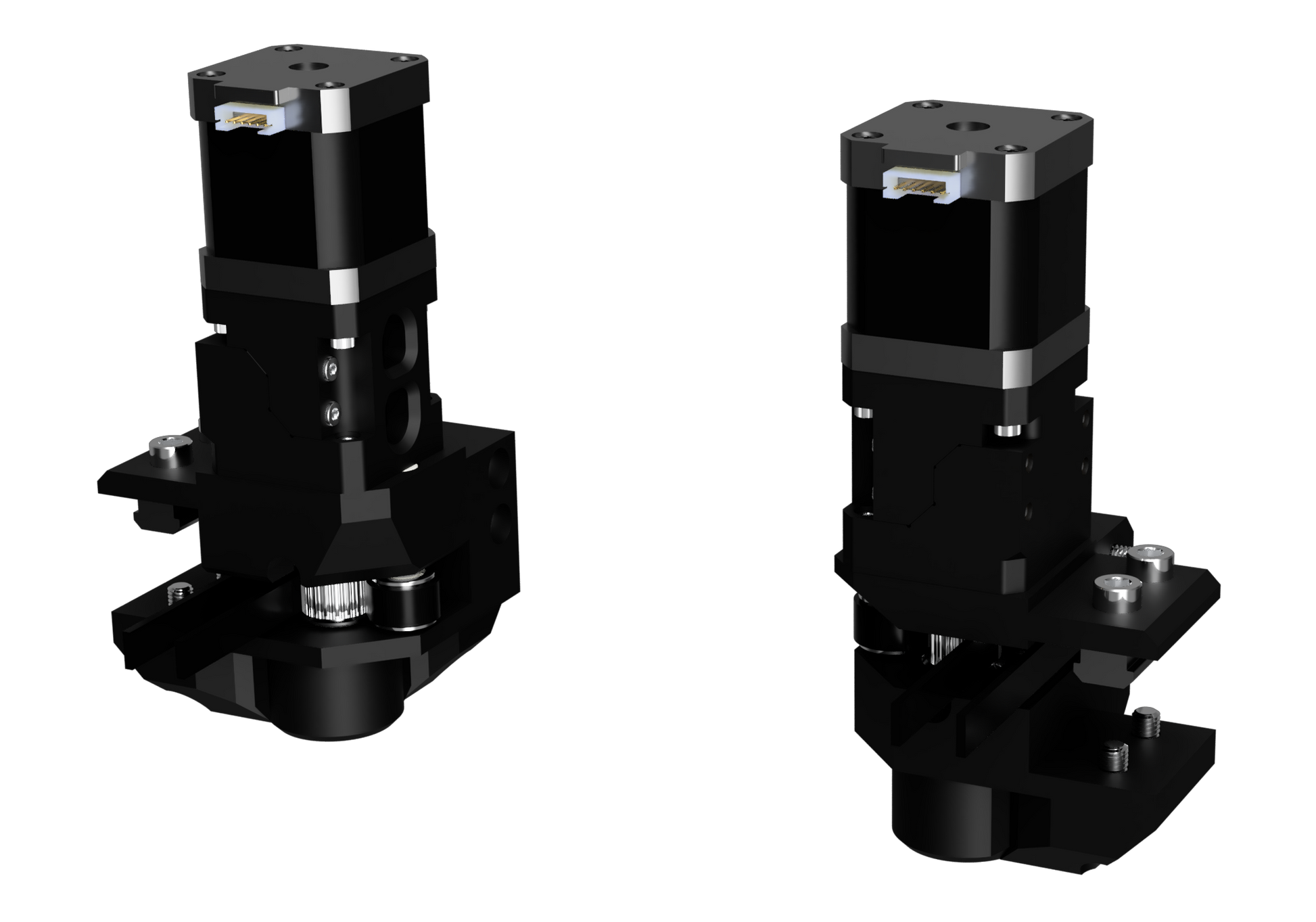

-AWD mod to add ANY Vcore version an easy and reliable AWD configuration

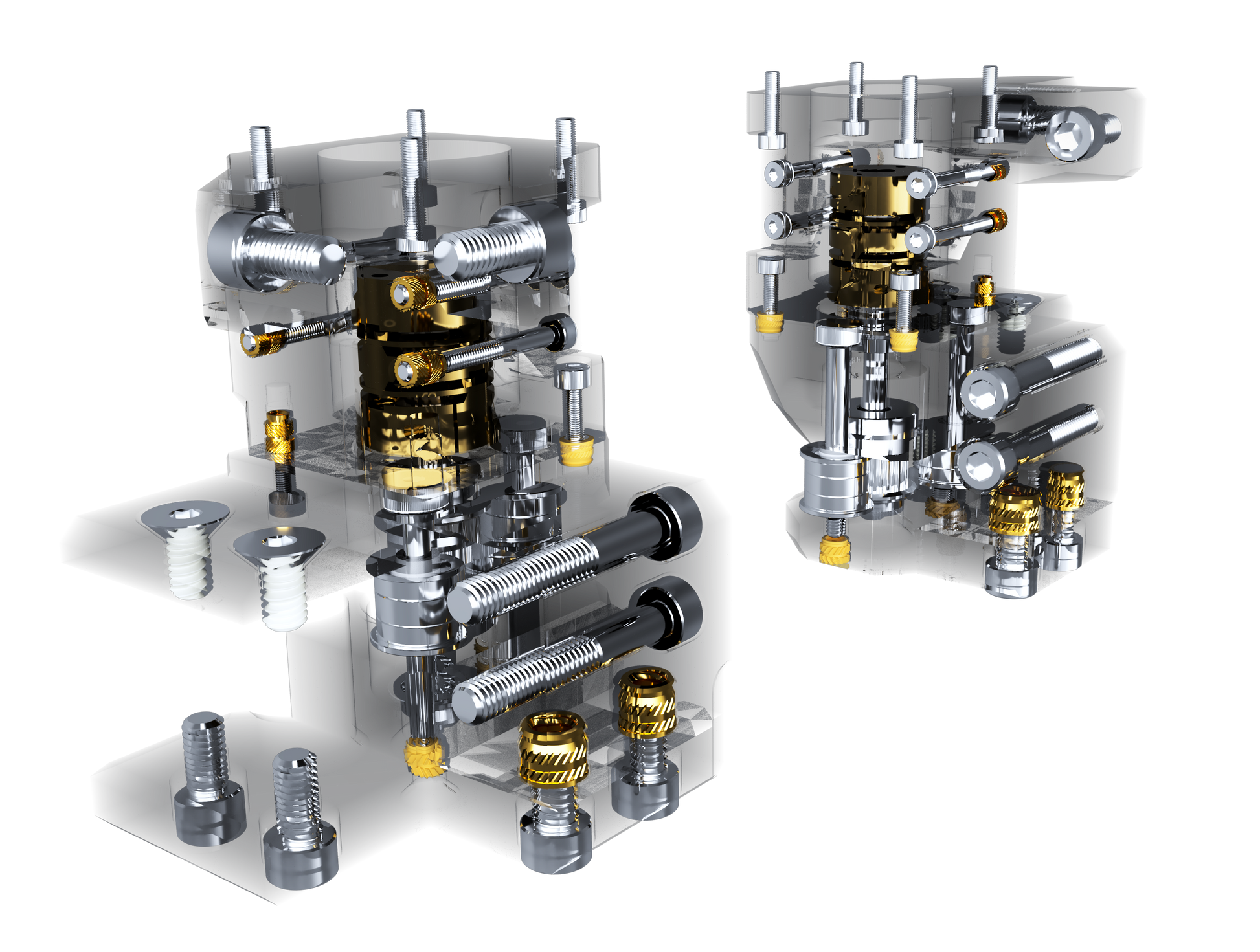

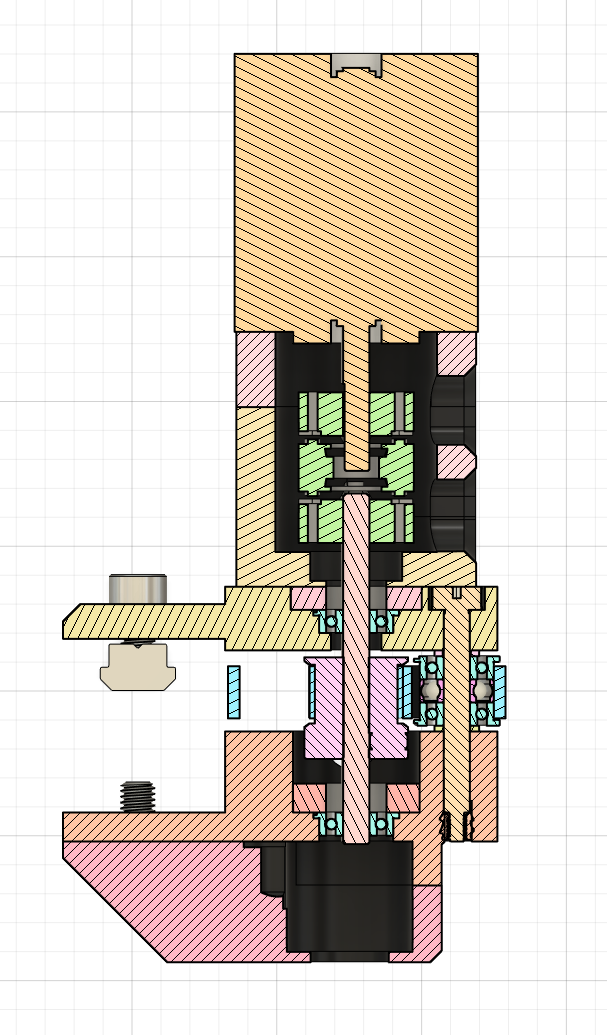

- Drive are mounted on a damper system, reducing noise. Pulleys secured with Abec-5/7 bearing for an increased lifespan


- Easy assembly, no modifications of the Frame needed, no need of Enclosure modifications. Require at least 30-60mm more belt lenght

Require Mirrored rear block (available here), If an L3ver M2 is used, please consider swapping to the AWD layout. The L3ver M1 is natively compatible.

This is the HARDWARE kit Only (No printed parts)

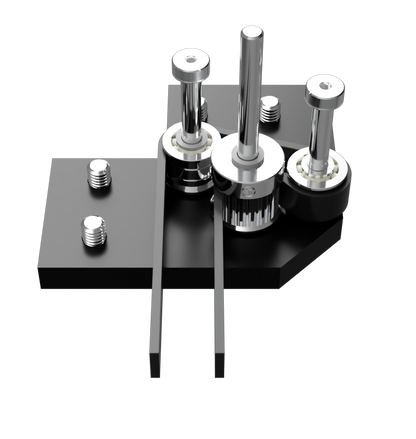

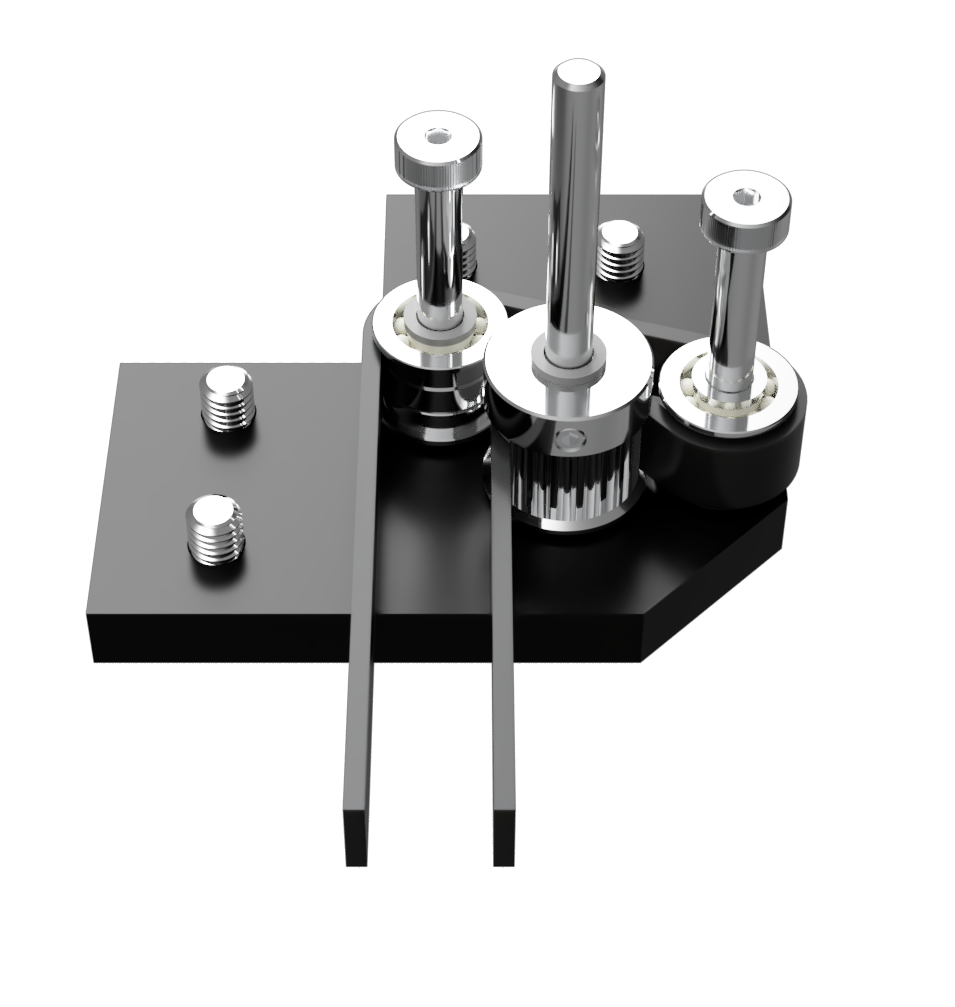

It includes the following elements:

Pulleys are sourced either from Genuines Gates, or the high concentricity Kis3D black ones

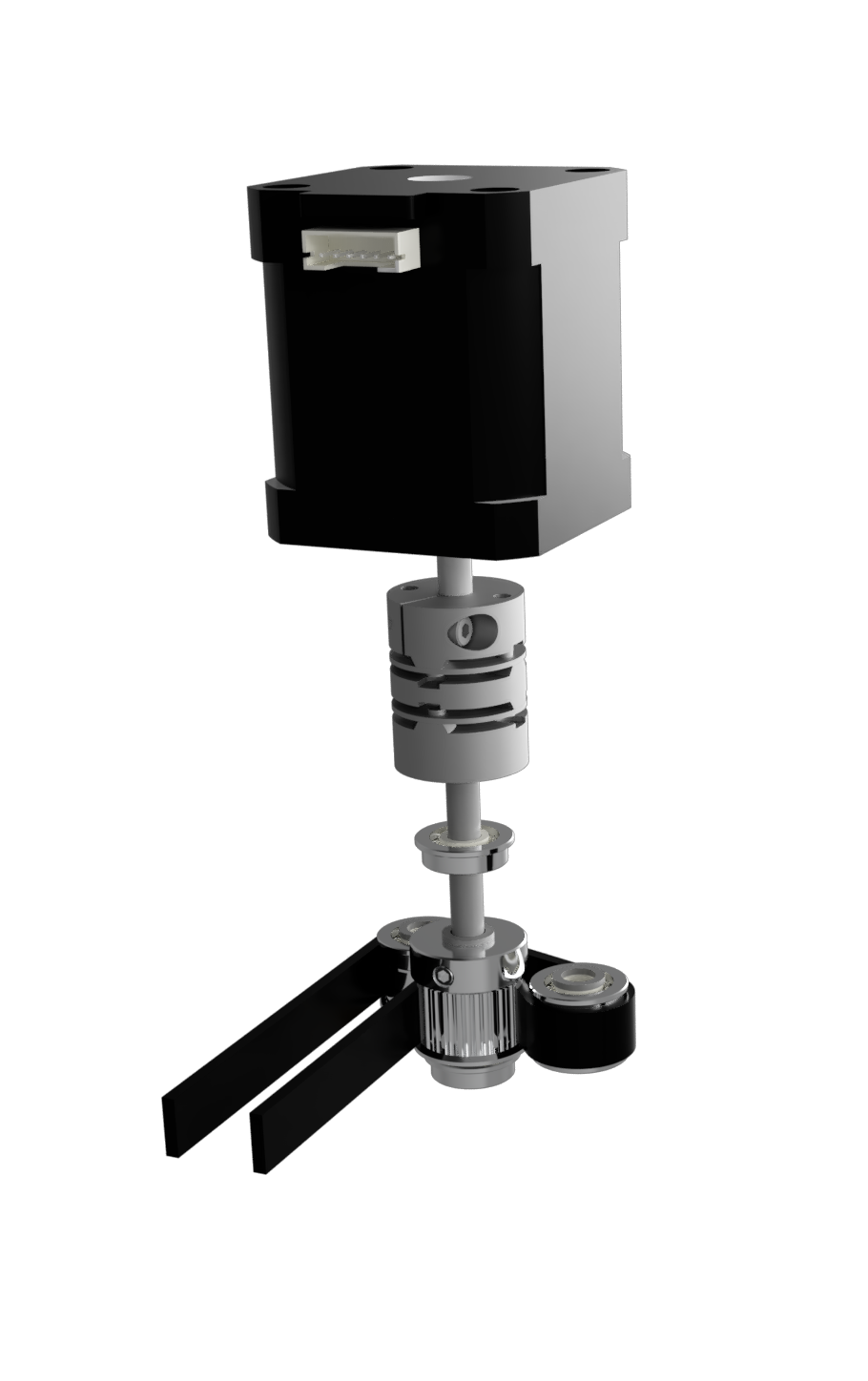

Bearings are HQ Abec-7 for longevity, Shoulderbolts featured a high dimension accuracy, and high quality/concentric Disc Couplers to match a perfect motion.

 Variations

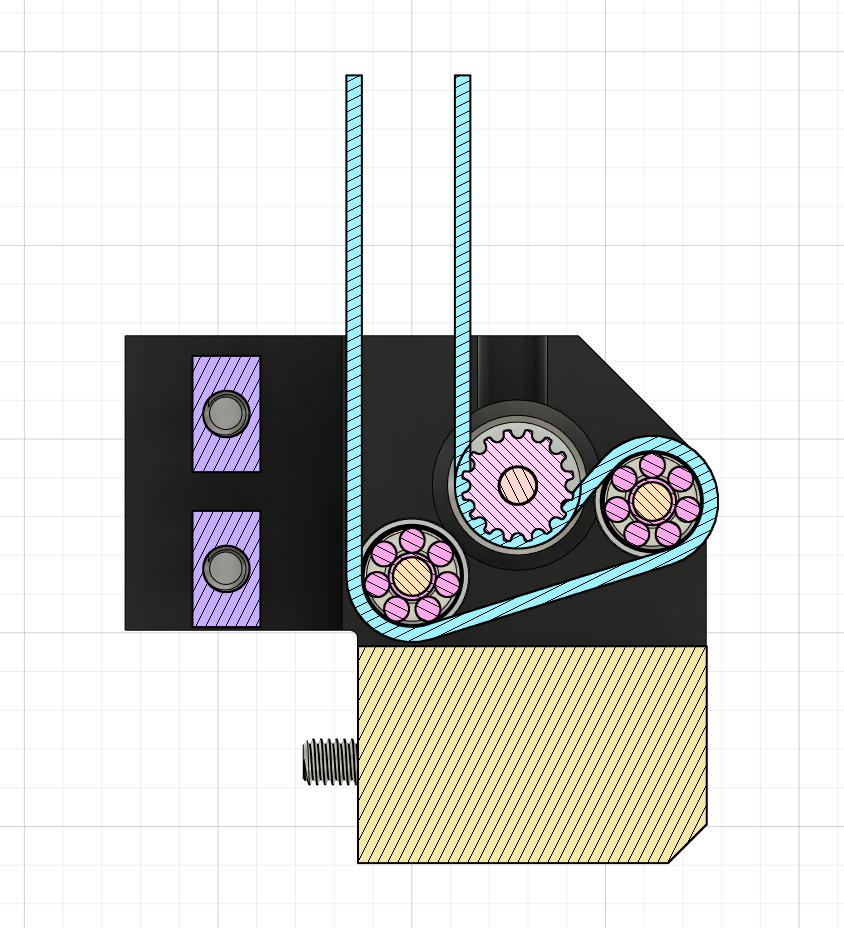

Bearing and Pulleys have 1mm variation on position between the VC3.0 and VC3.1 version to perfectly align the 3.0/3.1 belt path variations

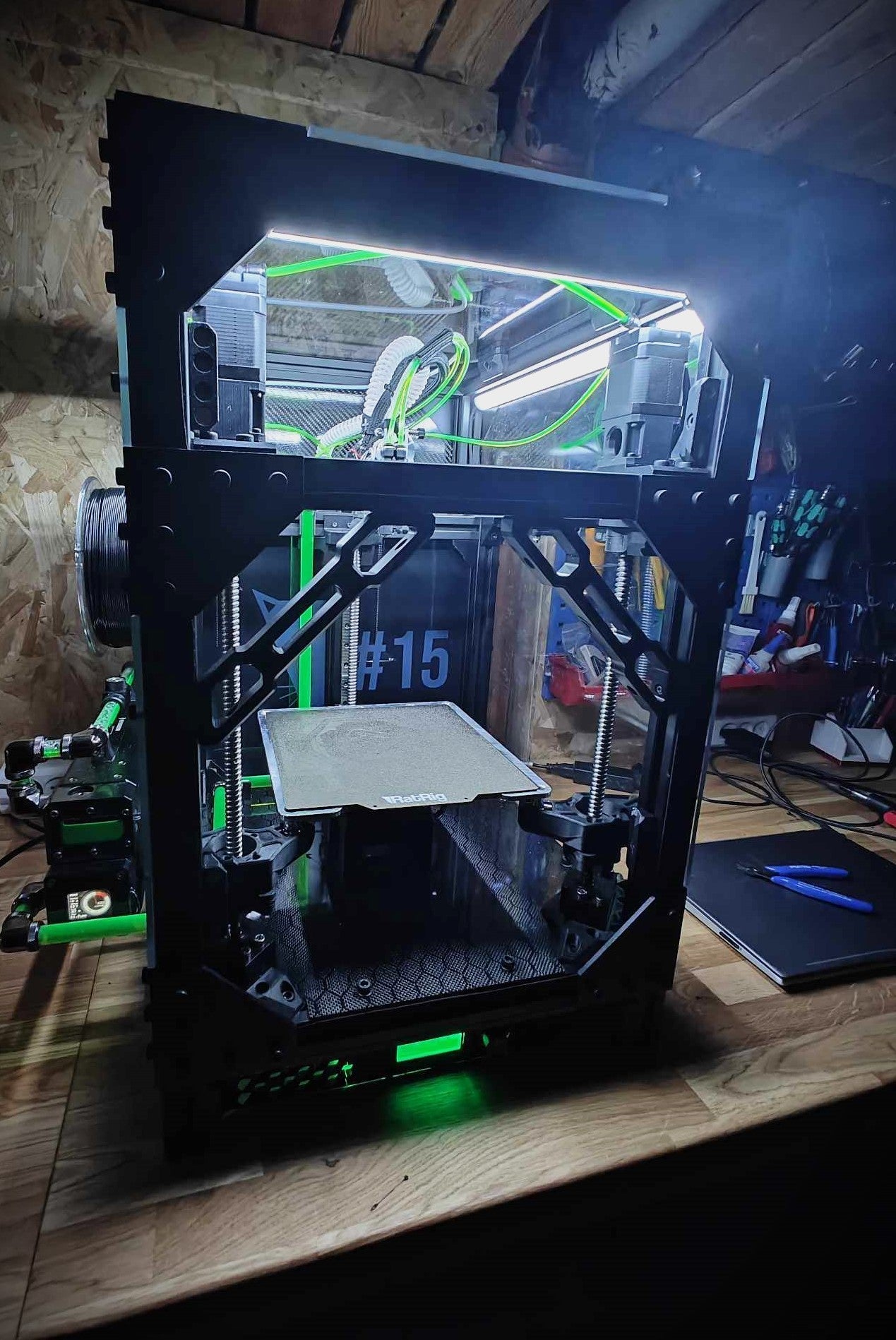

COMPATIBLE WITH: Vcore 3.0, Vcore 3.1, 200mm 300mm 400mm 500mm and more, Opened or closed front, Enclosure 1.0 (VC3.0), Extended Enclosure 2.0 (V3.1), Stock Z leadsrews, MBFS Ventermech, BRS Ballscrews Z-upgrade 1.0 and 2.0 with SFU1204 and 1605 (incoming), L3ver M1 and L3ver M2 (AWD layout)

STL Files

GITHUB Page

MANUAL
