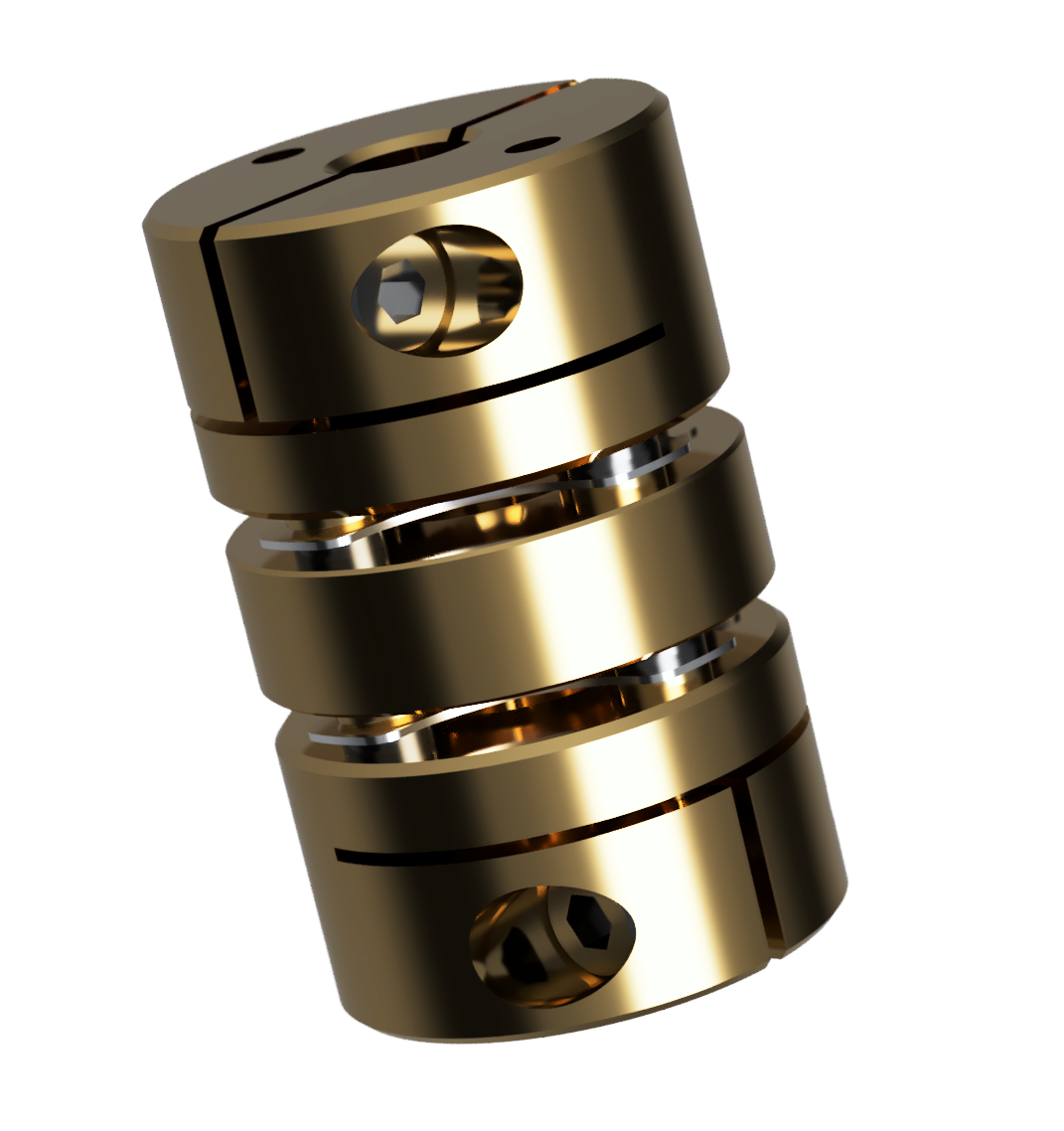

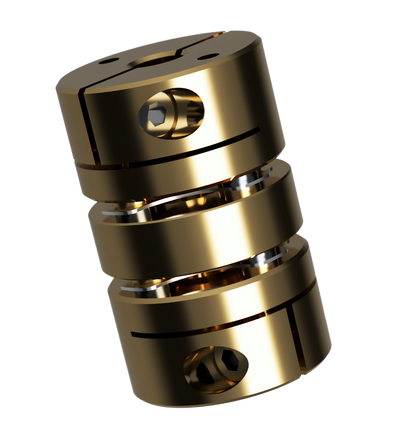

Disc coupler

Disc coupler

Prix habituel €13,90 EUR
Prix habituel Prix soldé €13,90 EUR
Vente Bientôt Disponible
Taxes incluses. Frais d'expédition calculés à l'étape de paiement.
Taille

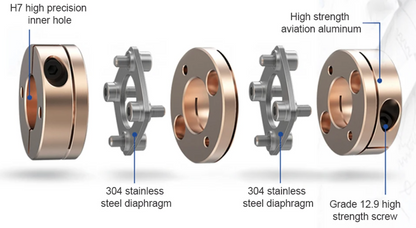

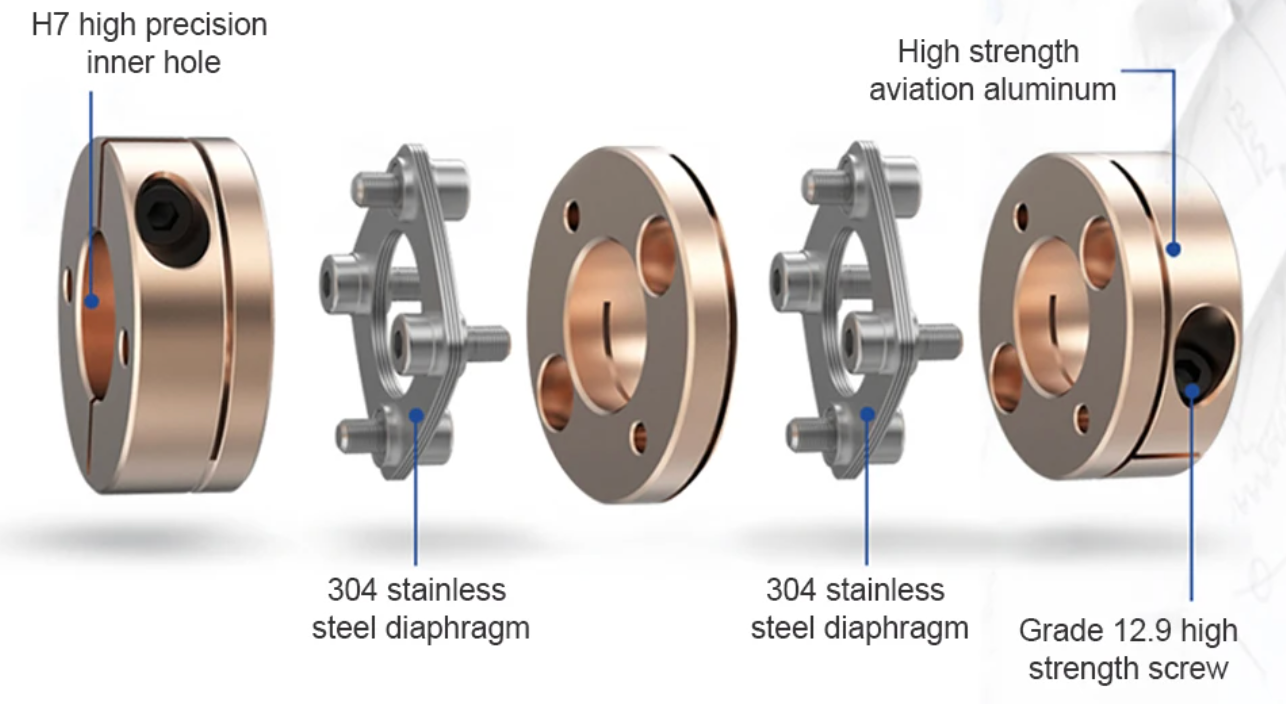

The disc coupling usually consists of two aluminum hubs and one or two stainless steel discs. The metal disc is very thin and when misalignment occurs, the metal disc will easily bend, allowing for minimal deviation. It is a high performance shaft coupling method, known for its high strength, long service life, and better misalignment absorption ability.

BRS Engineering provide this type for printer application since they behave better than low cost spyder coupler, and provide a perfect torque transmission with a high concentricity.

Type: Dual disc

Benefits:

  • Allows angular parallel and axial misalignment
  • Is a true limited end float design
  • A zero backlash design
  • High speed rating and balance
  • Better suited to NEMA and SERVO actuators


Pictures are not representative
