X-Gantry for RatRig V-Core 4

As you may have see on the SpannSysteme store page, all the products are labelled "Not in stock", that is because BRS-Engineering store is now making the relay to place an orders for those items.

STOCK FOR 725 Silver renewed / 725 Black will be available aithin the 4th November 2025

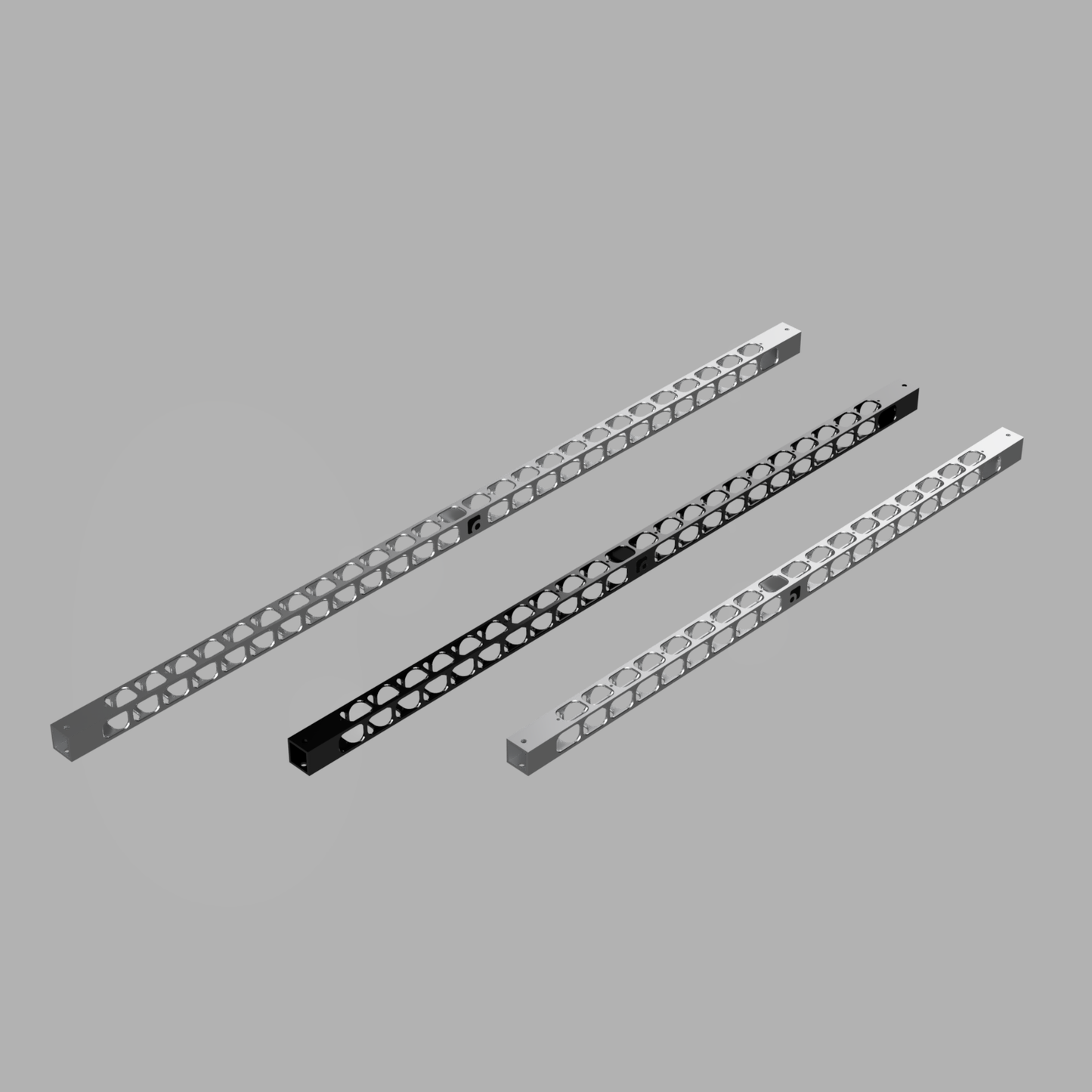

X-Gantry for RatRig V-Core 4

Compatible for: V-Core 4

• Dimensions:
  • VC4-500: 725 x 20 x 20 mm
  • VC4-400: 625 x 20 x 20 mm
  • VC4-300: 525 x 20 x 20 mm
• Weight:
  • VC4-500: 124 g (vs. 334 g of 2020 extrusion)
  • VC4-400: 105 g (vs. 288 g of 2020 extrusion)
  • VC4-300: 91 g (vs. 242 g of 2020 extrusion)
• System: Suitable for the RatRig V-Core 4 – 500
  • MGN12 linear rails
• Material: EN AW 6060 T66
• Production: Precision CNC milling
• Surface : (with minimal handling scratches)
  • Raw aluminium
  • Anodized black aluminium
• Note:
  • Mounting of the linear rail with M3x8mm screws (not included)

  • Download 3D files: XY Spacer
  • Made in Austria

2 kit available:

-The Tube Alone

-The tube and the specific Joiners to perfect fit your VC4

The joiner mod are made out of annealed PA12CF15 resilient and light material
