Z-Upgrade 3.2 SFU1605 (Vcore 4.0)

Name: Z-Upgrade 3.2 SFU1605 (Vcore 4.0)
Brand: BRS-ENGINEERING
Price: 379.0 EUR
Availability: InStock

€379,00 EUR

Vente Bientôt Disponible

Taxes incluses. Frais d'expédition calculés à l'étape de paiement.

Decoupler Type BRS-Oldham (printed) Wobble-X (full metal)

Ballscrews set With Without

Vcore Size 300 400 500

Variantes de produits

Quantité

Adaptation of the production grade "Z-Upgrade" for VCORE 4.0

Upgrade to replace the original Z with a ballscrew system.

More precise, very reliable over time, offers a very high repeatability in the Z movement compared to a trapezoidal screw.

Maintenance-free*. Made to last in a production line. No wobble over Z. Proofed design over 2021. More than 350+ users since 2021.

Lifetime Support

A lot of things has been reworked on this iteration compare to the previous Z-Upgrade 2.0:

Simplification of parts list, easier implementation. direct bolt in upgrade.
Directly bolted to the VCORE 4.0 frame and underplate. Re-use the Stock VC4 top retainers + bearings.
No need of surelevation; the Stock VC4 feet will only need to be adjusted to the height. (+17mm)
Compatible natively with Wobble X, Oldham V3 proofed printed rings compatible too
Dense integration of the Oldham/Wobble X in the Arms
Motor reduction for a very high holding torque, even when the motor aren't active. Proofed for heavy future custom bed, or bigger custom print volume machines. Vcore 500 can now run standard Nema 17 without risks of fall when the motor are powered off
Motor reduction + ballscrew allowing an insane precision over the Z-Motion, extreme constistencies, allow thin and repetable layer over time
No maintenance needed (cleaning+thin lubrication once a year is enough)
Z-motors easy tension over the 6mm timing belt with 1x M6 screw
Add +10mm of Z distance (Oldham V3), or +15mm with Wobble X
All included, no self soucing to do.

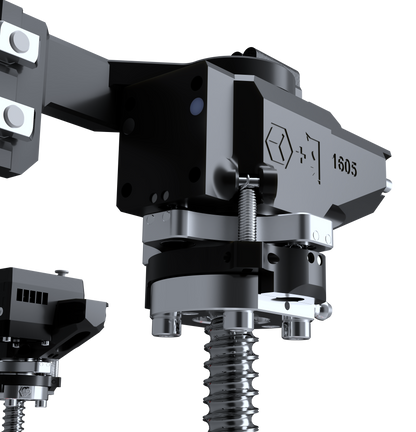

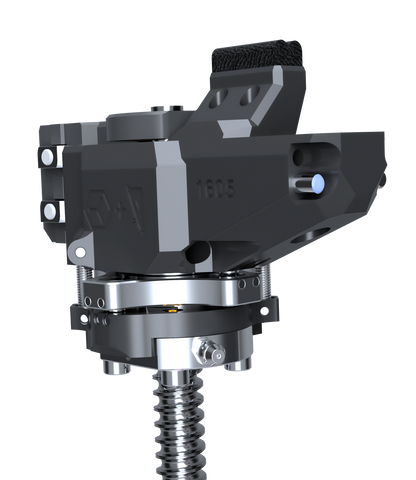

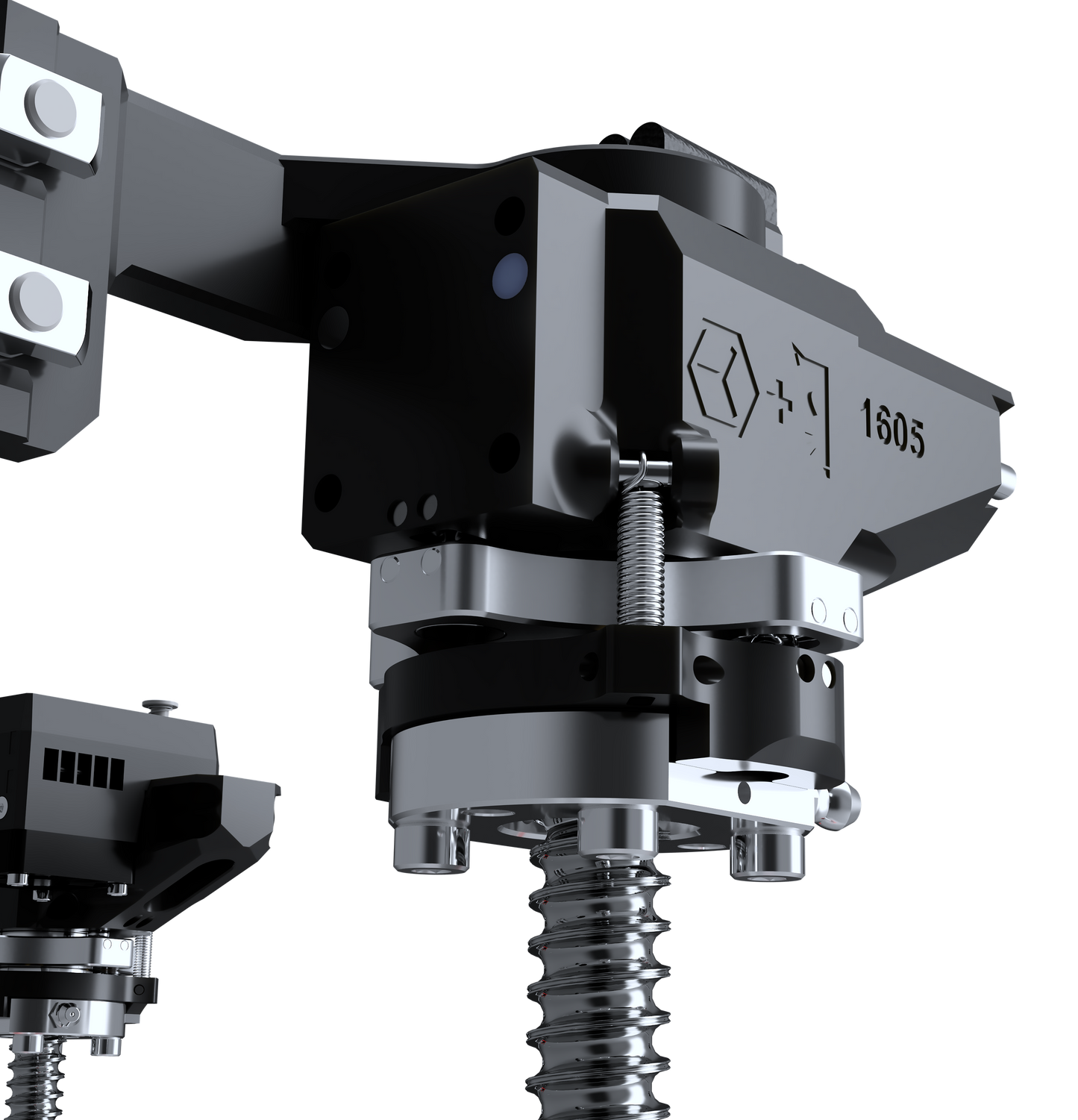

SFU1605 version for Larger machine

What is included in the 1204 kits:

BRS-OLDHAM V3	WOBBLE-X

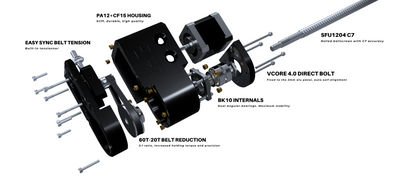

Motor frame block Left Motor frame block Right Motor Frame block Rear Arm L v2 Arm R v2 Arm Rear v2 x3 6x180mm belt x3 Gt2-60T bore 8mm x3 Gt2-20t bore 5mm All screws needed to fit the VCORE 4.0 x3 Oldham 12mm v3 decoupler	Motor frame block Left Motor frame block Right Motor Frame block Rear Arm L v2 Arm R v2 Arm Rear v2 x3 6x180mm belt x3 Gt2-60T bore 8mm x3 Gt2-20t bore 5mm All screws needed to fit the VCORE 4.0 x3 Mellow Wobble-X ws12

x3 SFU1204 C7 Ballscrews with BK10/BF10 IF CHOOSEN IN THE OPTIONS

What is included in the 1605 kits:

BRS-OLDHAM V3	WOBBLE-X
Motor frame block Left Motor frame block Right Motor Frame block Rear Arm L v2 Arm R v2 Arm Rear v2 x3 6x180mm belt x3 Gt2-60T bore 10mm x3 Gt2-20t bore 5mm All screws needed to fit the VCORE 4.0 x3 Oldham 16mm v3 decoupler (with hardware)	Motor frame block Left Motor frame block Right Motor Frame block Rear Arm L v2 Arm R v2 Arm Rear v2 x3 6x180mm belt x3 Gt2-60T bore 10mm x3 Gt2-20t bore 5mm All screws needed to fit the VCORE 4.0 x3 Mellow Wobble-X ws16
