Aluminium 2020/3030 Diagonal Support

BRS-ENGINEERING is now the only reseller and store interface for SpannSysteme in EU, and extensively to the rest of the world.

As you may have see on the SpannSysteme store page, all the products are labelled "Not in stock", that is because BRS-Engineering store is now making the relay to place an orders for those items.

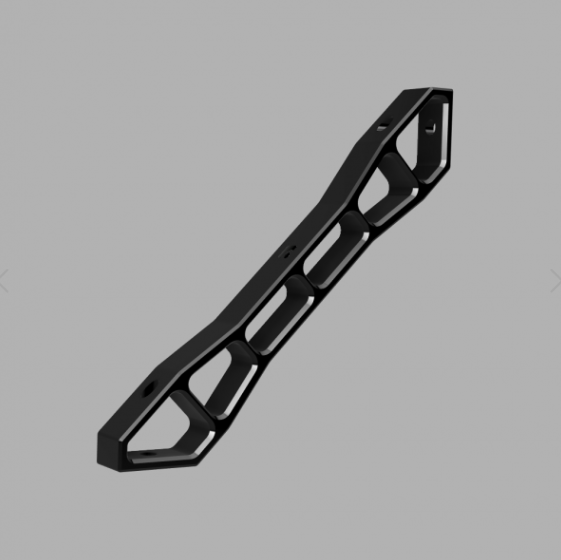

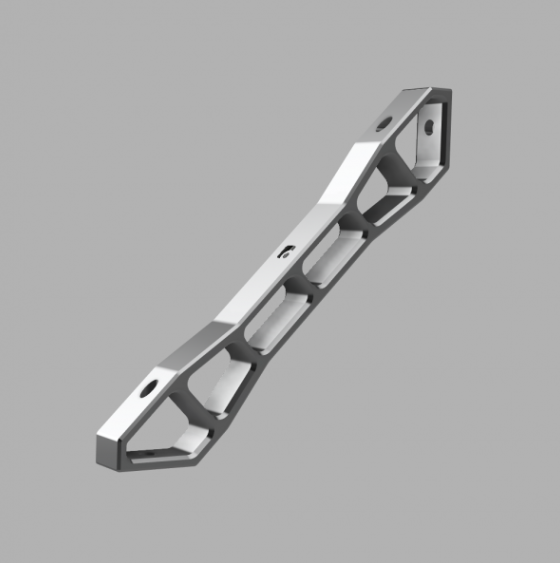

Aluminium 2020/3030 Diagonal Support

• Dimensions: 195 x 30 x 19 mm
• Material: EN AW 7075
• Production: Precision CNC milling
• Surface : (with minimal handling scratches)
  • Raw aluminium
  • Anodized black aluminium
• Location: Made in Austria
• Note:

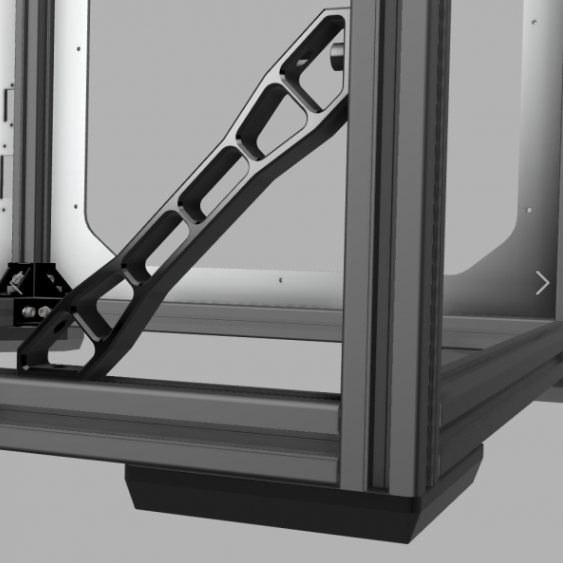

  • Fits all 3030 aluminium extrusions
  • Fits all 2020 aluminium extrusions
  • Distance from Plane to 45° hole is 125.40 mm
  • M6x12 mm screws and nuts needed
  • No screws or nuts included
• Design: Credit goes to Simon Vez (VzBot)
