Aluminium 3030 Joining Plate Bottom

BRS-ENGINEERING is now the only reseller and store interface for SpannSysteme in EU, and extensively to the rest of the world.

As you may have see on the SpannSysteme store page, all the products are labelled "Not in stock", that is because BRS-Engineering store is now making the relay to place an orders for those items.

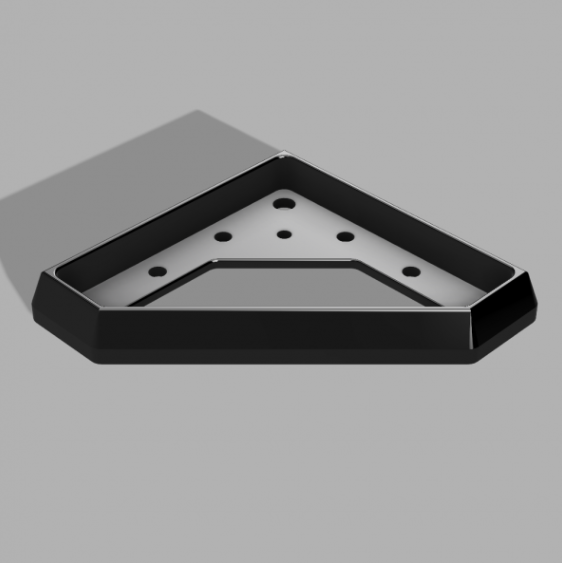

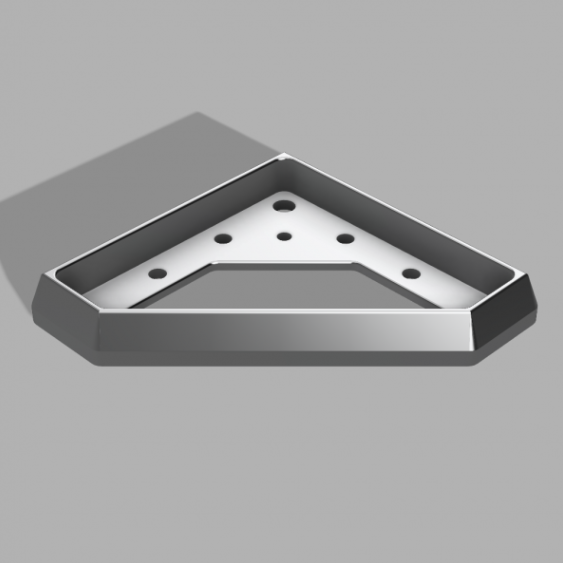

Aluminium 3030 Joining Plate Bottom

• Dimensions: 118 x 118 x 19 mm
• Material: EN AW 7075
• Production: Precision CNC milling
• Surface : (with minimal handling scratches)
  • Raw aluminium
  • Anodized black aluminium
• Location: Made in Austria

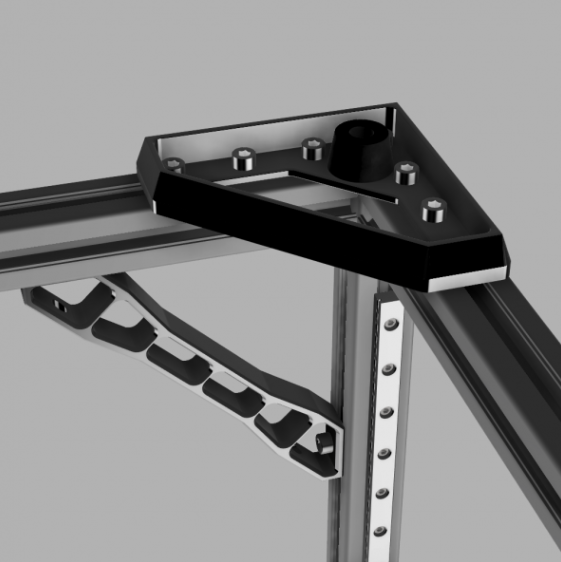

• System: Suitable for the RatRig V-Core
• Note:
  • Fits all 3030 aluminium extrusions
  • Shall be used with rubber foot with metal insert 28*22*16.5mm
  • M6x16 mm screws and nuts needed
  • No screws or nuts included
• Design: Credit goes to Dennis Jespersen (DJ_Designs) for an initial build
